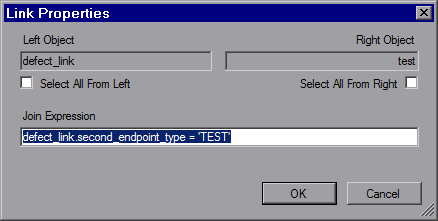

Link Properties Dialog Box
The Link Properties dialog box enables you to edit relationships between entities.
| To access |
Double-click a relation line between two related entities. |
| See also | Creating and Managing Business Views |
User interface elements are described below.
| UI Element | Description |
|---|---|
| Left/Right Object | Displays the technical names of the joined entities. |
| Select all from left/right | Use the checkboxes to define if the relationship contains inner, left, right, or outer joins. |
| Join expression | Enables you to edit the join expression. |
